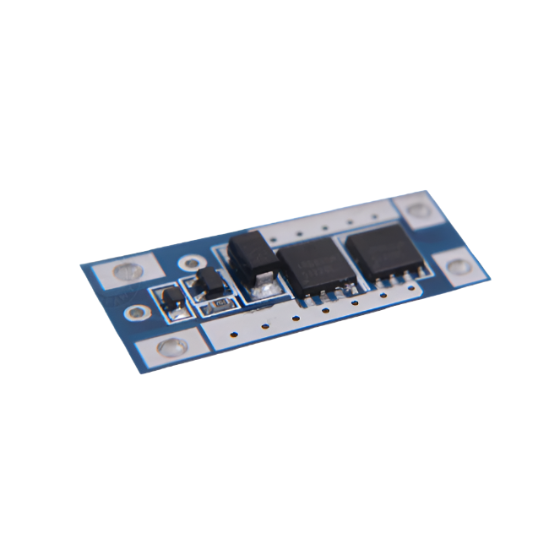

AceTech AceMos Plus Mosfet Unit for AEG (GG10-09)

The AceTech AceMOS Plus MOSFET Unit offers benefits like enhanced trigger response and protection for your Airsoft Electric Gun (AEG) by improving electrical efficiency and safeguarding components. It increases trigger response time, protects against motor-related damage from Back Electromotive Force (BEMF), and can improve battery life by minimizing power loss and heat through the trigger contacts.

Performance enhancements

• Faster trigger response: The MOSFET driver provides a crisp and responsive trigger pull, improving the gun's reaction time.

• Increased rate of fire: By optimizing electrical flow, it can lead to a higher rate of fire.

• Reduced heat generation: It minimizes power loss as heat, which contributes to more consistent performance.

Component and battery protection

• BEMF protection: Built-in circuit protection prevents damage from Back Electromotive Force, which can harm electronic components when the motor stops abruptly.

• Longer battery life: By reducing power lost through the trigger contacts, the unit can help the battery last longer.

• Protection against wear: It protects the trigger contacts from arcing, a cause of carbon buildup and damage, extending their lifespan.

Compatibility and efficiency

• Low impedance: Using connectors like Deans T plugs (which the AceMOS supports) reduces impedance for better efficiency.

• Versatile connection: Some AceTech models, like the LVP model, are compatible with both Deans and Mini Tamiya connectors via an included adapter.

• Compact design: The AceMOS Nano is small and lightweight, making it easy to install without adding bulk.

Features:
• Hi-Power dual MOSFET driver
• Built-in circuit protection to avoid MOSFET-suffered BEMF (Back Electromotive Force) damage
• MOSFET driver designed to increase trigger response while also reducing the amount of heat generated
• Can be used with the XT-60 connector to reduce impedance
• Low internal resistance (in parallel): 0.0014 OHMS
• Included heat shrink tubing
• Maximum Input Voltage: 16V
• Maximum Current: 30A
• Dimensions: 30mm x 14mm x 4.7mm
• Compatibility: For original Airsoft AEG gearbox
