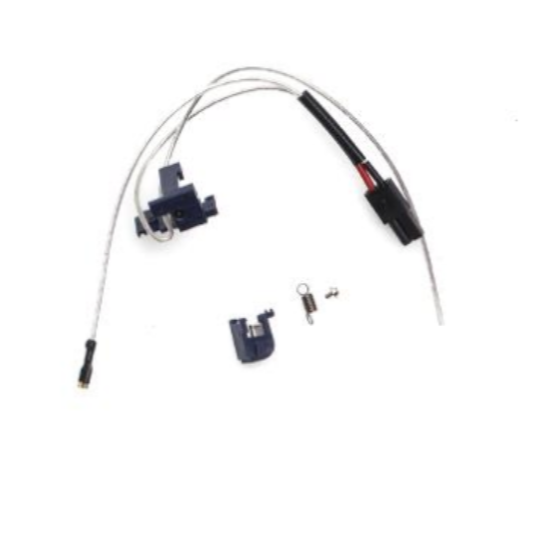

ASG ULTIMATE Rear-Wired Switch Assembly for V2 M4/M16 AEG (GG07-06)

The ASG ULTIMATE Rear-Wired Switch Assembly is a replacement trigger switch and wiring assembly designed for Version 2 airsoft AEG gearboxes with the battery located toward the rear of the rifle.

Designed for M4, M16, and other compatible V2 gearbox platforms, the rear-wired configuration routes the battery wiring toward the buffer tube or stock.

Features

• ASG ULTIMATE Upgrade Series
• Designed for Version 2 AEG gearboxes
• Rear-wired configuration
• Ideal for M4/M16 AEGs with stock-mounted batteries
• Low-resistance silver wiring
• High-quality electrical contact surfaces
• Heat-resistant switch components
• Helps provide efficient current transfer
• Replacement for worn or damaged trigger contacts and wiring
• Suitable for AEG gearbox repairs and electrical upgrades

Specifications

Brand: ASG / ActionSportGames
Series: ULTIMATE Upgrade Series
Part Type: Trigger Switch & Wiring Assembly
Gearbox Version: V2 / Version 2
Wiring Configuration: Rear Wired
Platform: M4/M16 and Compatible V2 AEGs
Wire Type: Low-Resistance Silver Wire
Wire Origin: Japan
Switch Construction: Heat-Resistant Compound

Rear-Wired Configuration

This assembly routes the battery wiring toward the rear of the gearbox, making it appropriate for AEG configurations where the battery is stored in the buffer tube, crane stock, fixed stock, or another rear battery compartment.

Make sure your AEG requires a rear-wired V2 assembly before installation.

Low-Resistance Wiring

ASG's ULTIMATE wiring uses low-resistance silver wire designed to provide efficient electrical current flow between the battery, trigger switch, and motor.

The switch components are manufactured from heat-resistant materials to improve reliability during operation.

Compatibility

Designed for Version 2 AEG gearboxes, including many M4 and M16-style airsoft rifles.

This is the rear-wired version. It should not be confused with a front-wired V2 switch assembly used in AEGs where the battery is located in the handguard or front of the rifle.

Verify gearbox and wiring configuration before installation.

Package Includes

1 × ASG ULTIMATE V2 Rear-Wired Switch & Wiring Assembly

Installation Note

Installation requires opening the gearbox and connecting the wiring to the motor and battery system.

Check wire routing, connector polarity, trigger contact alignment, motor connections, and insulation before operating the AEG.
