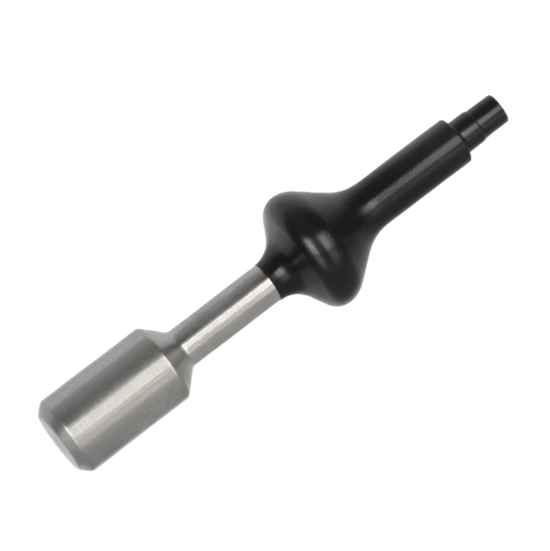

Planet Eclipse Exhaust Valve Assembly - EGO LV1/LV1.1/LV1.5/LV1.6/LVR/LV2

The Planet Eclipse Ego Exhaust Valve Assembly acts as the core poppet/exhaust valve component inside the marker's high-pressure air chamber, controlling the release of compressed air required to fire a paintball.

How It Works

Sealing Air: The exhaust valve remains shut under high pressure, holding a volume of compressed air inside the valve chamber until triggered.

Cam Lever Actuation: When you pull the trigger, the rammer moves forward and strikes a cam lever.

Opening the Valve: The bottom of the cam pushes the exhaust valve open.

Firing the Paintball: Stored air rushes through the valve guide, up through the bottom of the bolt, and out the breech to propel the paintball.

Resetting: As the rammer cycles back, the cam resets and allows the exhaust valve to close, sealing the chamber for the next shot.

Compatibility

• EGO LV1.
• EGO LV1.1.
• EGO LV1.5.
• EGO LV1.6.
• EGO LVR.
• EGO LV2.

Part Details

• Brand: Planet Eclipse.
• Component: Exhaust valve assembly.
• Factory part number: SPA100734A000.
• Store SKU: 100.734.A-000.
