Planet Eclipse EGO LV2 Spare Parts Kit Bag (GG09-20)

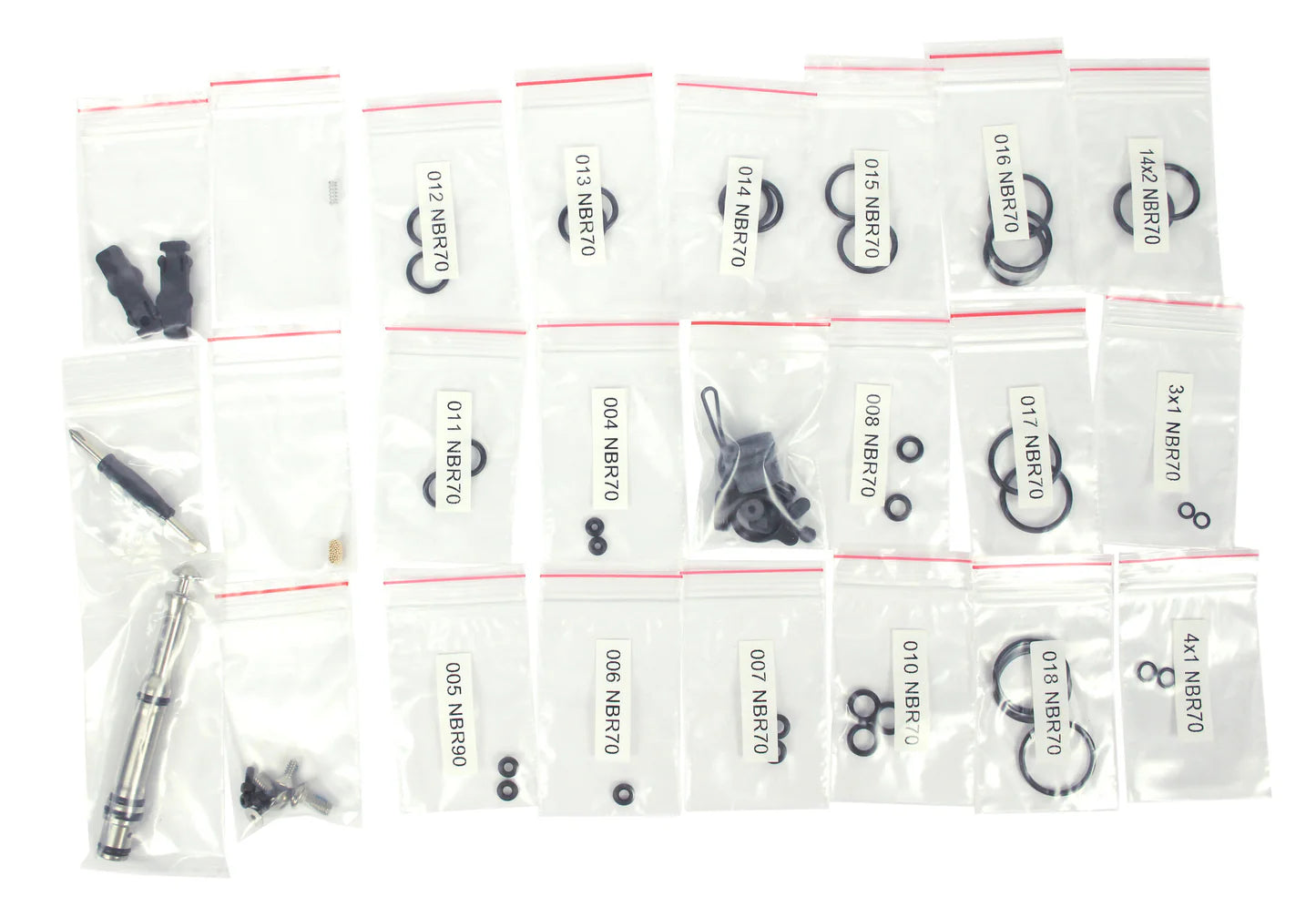

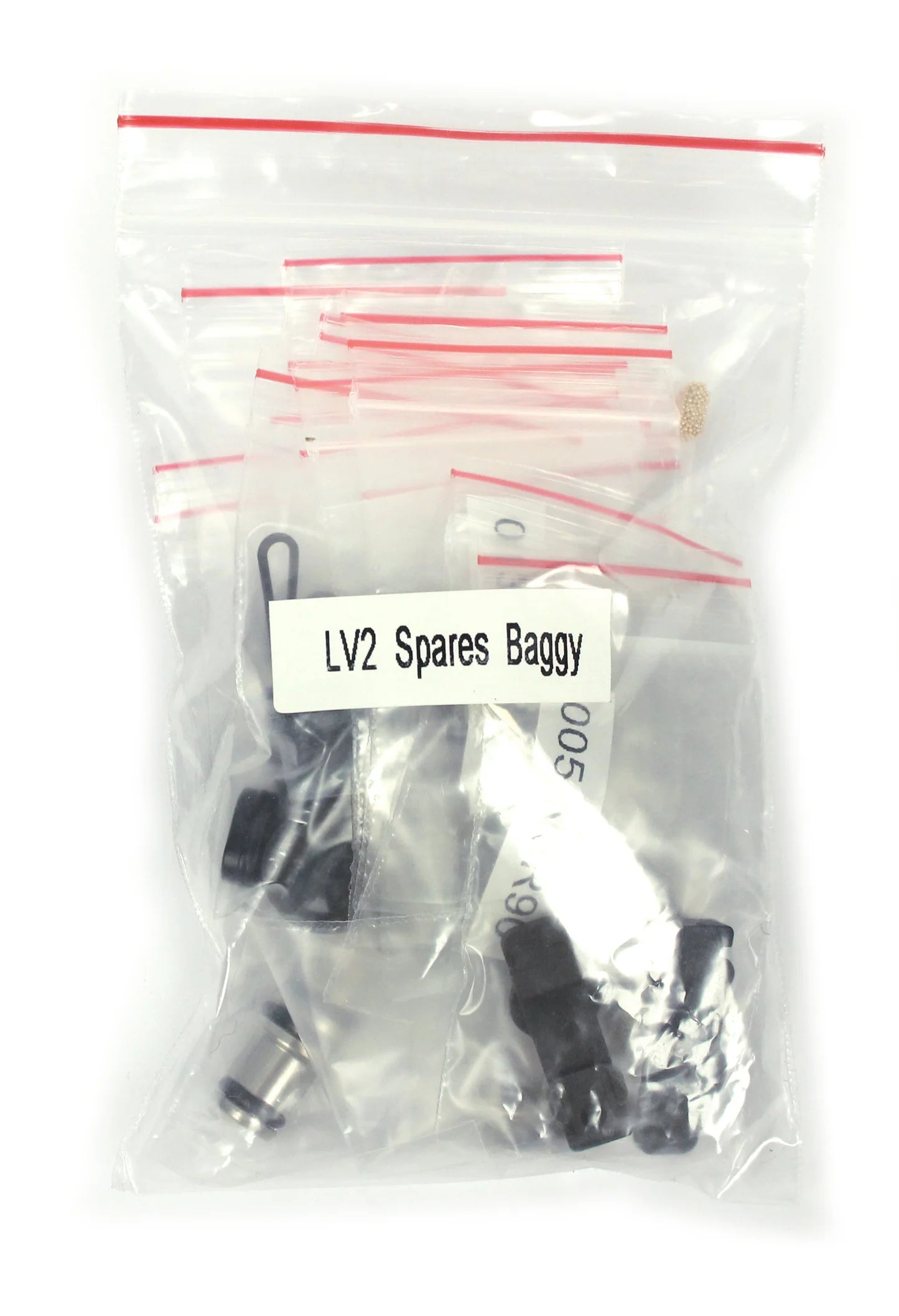

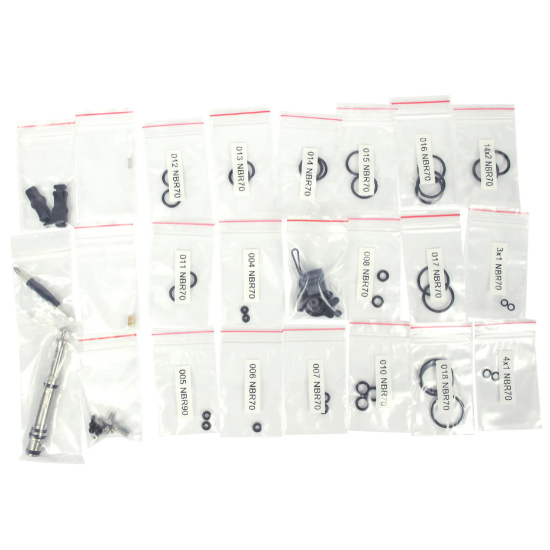

The Planet Eclipse EGO LV2 Spare Parts Kit Bag brings together replacement O-rings, gaskets, hardware, and service components for LV2 maintenance.

O-Rings

Two of each size, all listed as NBR70:

• 004, 006, 007, and 008.
• 010, 011, 012, 013, and 014.
• 015, 016, 017 and 018.
• 14 × 2, 4 × 1 and 3 × 1.

Seals, Gaskets and Regulator Parts

• 2 × GEO CS1 POPS seals.
• 2 × GEO3.1 frame filters.
• 2 × regulator relief springs.
• 2 × SL3 purge poppets.
• 2 × SL3 regulator seals.
• 2 × LV1.6 metal manifold-to-body gaskets.
• 2 × LV1.6 metal manifold-to-solenoid gaskets.
• 2 × LV2 regulator gaskets.
• 2 × LV2 regulator plugs.

Hardware and Additional Components

• 2 × EGO Mk2 ball detents.
• 2 × CS3 MK2 bolt tips.
• 2 × patched 6-32 UNC × 5/16-inch countersunk socket screws.
• 2 × M2.5 × 5 cap head screws.
• 2 × patched 10-32 UNF × 3/8-inch button head screws.
• 2 × GEO CS1 eye cover clips.
• 2 × LV mini screwdrivers.
• 1 × LV1 lightweight rammer assembly.

Details

Brand: Planet Eclipse.
Application: EGO LV2.
Part number / SKU: SPA050780A000.
