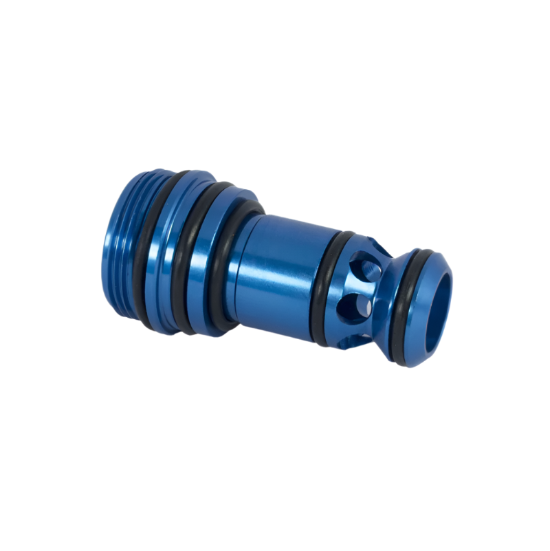

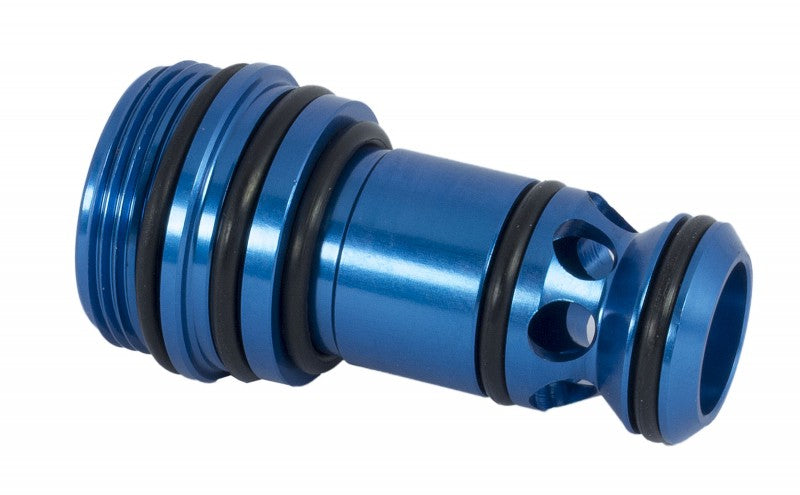

Planet Eclipse GTEK/160R/170R/M170R/ETHA/EMEK/EMF100 Gamma Core Bolt Guide Assembly

The Planet Eclipse Gamma Core Bolt Guide Assembly serves as the physical cylindrical rod/shaft that the main bolt rides and slides back and forth on during the firing cycle. It contains internal air passages and works in tandem with the spool and port holes (including the small bleed/metering hole) to control how air fills the chamber behind the bolt and cycles the marker.

Compatibility

• Planet Eclipse GTEK
• Planet Eclipse 160R
• Planet Eclipse 170R and M170R
• Planet Eclipse EMEK 100
• Planet Eclipse EMF100
• Planet Eclipse ETHA2, ETHA3, and ETHA3M
• Planet Eclipse CS1 and CSR

Part #SPA050495A000
