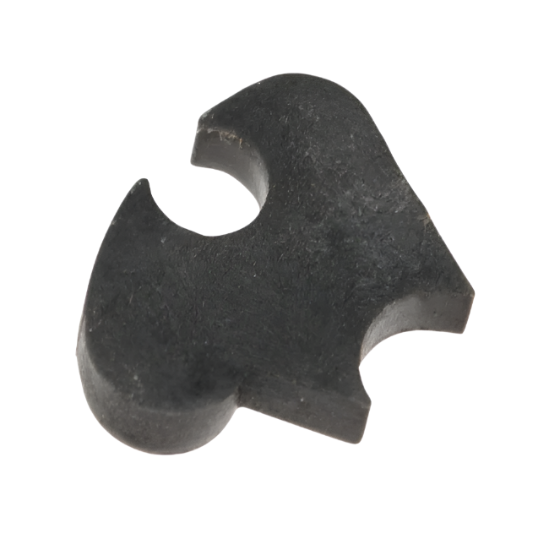

Retro Arms AEG Gearbox Sector Delay Clip (GG07-04)

The Retro Arms Sector Delay Clip is a component for Airsoft AEGs that improves BB feeding reliability, especially in high rate-of-fire (ROF) builds. Its purpose is to increase the time the air nozzle is retracted, allowing the magazine more time to load a BB into the hop-up chamber, which helps prevent feeding issues like double-feeding and chopping. The clip works by holding the tappet plate back for a longer duration during the gearbox cycle.

Benefits

• Improves feeding consistency: Prevents misfeeds and double-feeding, which is common in high ROF builds.

• Reduces BB chopping: By ensuring a BB is fully chambered before the nozzle closes, it prevents BBs from being chopped or damaged.

• Increases feeding window: Extends the time the air nozzle is retracted, giving the magazine more time to feed a BB.

• Can be modified: The chip can be sanded down to fine-tune the timing for specific builds.

• Durable material: Constructed from lightweight polymer, it is designed for durability.

Purpose

• The main purpose is to solve feeding problems caused by a very high rate of fire, which occurs when the air nozzle retracts too quickly.

• It's a necessary upgrade for builds with high-speed motors or batteries that significantly increase the ROF beyond the standard timing.

• By delaying the tappet plate's movement, the clip ensures a BB is properly seated in the hop-up unit before the next BB is fed.

Important considerations

• Installation: Requires opening the gearbox, which is recommended for those with experience or who are familiar with AEG internals.

• Orientation: The clip can be installed in two orientations, which affects the feeding timing differently.

• Semi-auto: May not be necessary for all builds, but can still be beneficial for improving reliability even in semi-auto fire mode.

Features:

• Durable, lightweight polymer construction
• Compatible with most standard sector gears
• Improves feeding
• Reduces chopping and misfeeds

Compatibility: Most AEG sector gears
Material: Polymer

** Retro Arms recommends securing the sector clip with super glue.
